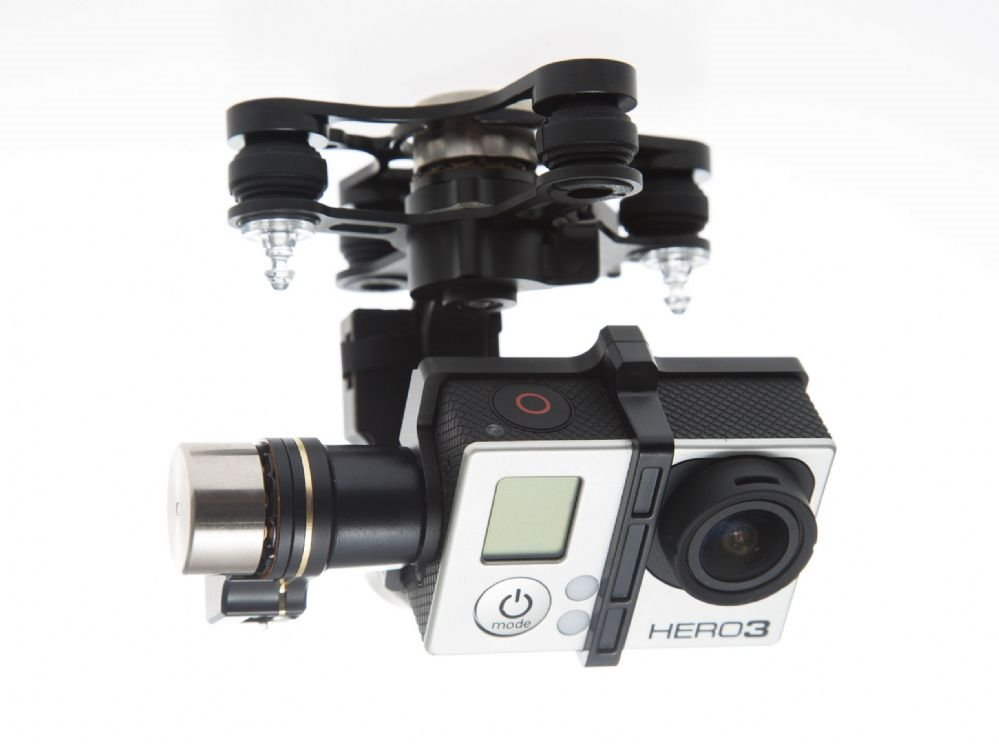

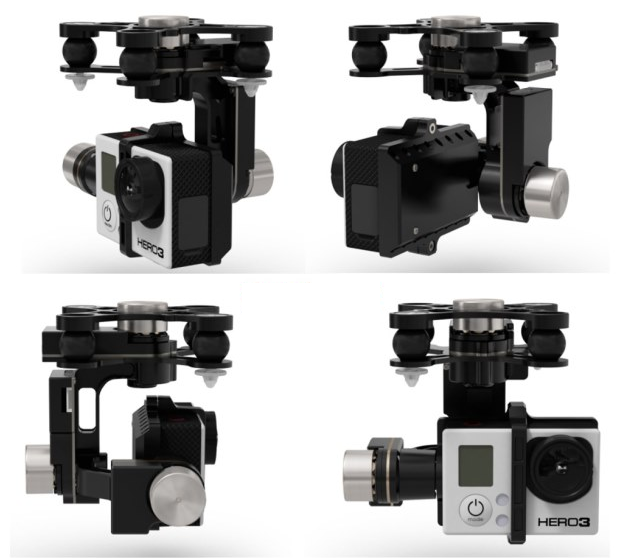

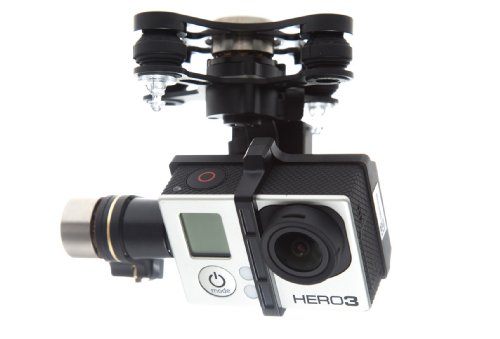

DJI Zenmuse 3 Ejes H4-3D for GoPro 4 sin Gcu

Cuidado¡¡¡¡ para usar el H4 , hay que tener la gopro puesta, si no se queman los motores

DJI Zenmuse H4-3D solo para gopro 4

Features
3-axis high performance gimbal
3-axis GoPro stabilization, high precision control (within ±0.08°)
The 3-axis Zenmuse H3-3D Gimbal is another milestone in gimbal innovation. Designed for the GoPro Hero3 and Hero3+, it is a high precision gimbal
offering high stability, light weight and plug and play simplicity. It is ideal for a range of applications, from film and TV to ciematography.

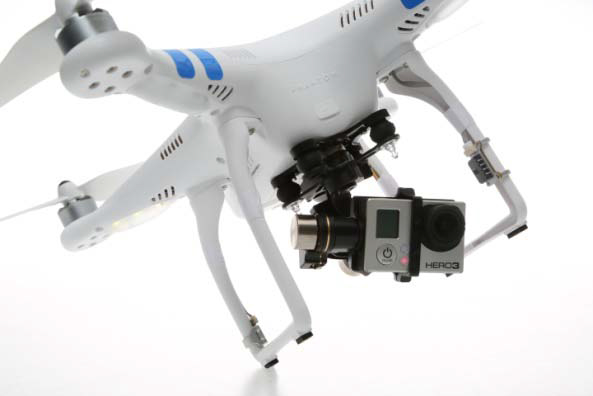

Create astonishing aerials, compatible with Phantom 2 and Flame Wheel

Smooth aerial creativity
Aluminum alloy material. Strong, lightweight, easy to install, plug and play. Free
Hardware mounting and software tuning.
Compatible with DJI flight control systems
• Multirotor (currently support) – WooKong-M, NAZA-M V1, NAZA-M V2, Phantom 2
• Heli (will support) – Ace One, WooKong-H, NAZA-H
• NAZA-M LITE not supported
Notice: NAZA-M V1 and Phantom users must use NAZA-M V2 PMU

Part of the Zenmuse family
The H3-3D gimbal inherits the core algorithms of the Zenmuse professional series and
is powered by advanced algorithms, high precision sensors and brushless motors. This
means that the DJI Zenmuse H3-3D gimbal provides pixel level stabilization.

Independent IMU
The independent high-precision IMU module is an easy to install unit that provides
precise attitude data while a closed-loop control gives improved control accuracy.

Online Upgrade
Functionalities can be easily expanded though firmware upgrades.

Specifications
Peripheral
Supported Camera: GoPro Hero 3/ Hero 3+ (Black and Sliver)
GCU Input Power: 3S~6S LiPo(12V~26V)
Assistant Software System Requirement: Windows XP SP3; Windows 7; Windows 8
Mechanical & Electrical
Gimbal Operating Current Static current: 400mA (@12V); Dynamic current: 600mA (@12V)
Gimbal Input Power: 3S~6S(12V ~26V)
Operating Temperature: -10°C ~ 50°C
Gimbal Weight: 168g(without GoPro3 camera)
Gimbal Dimensions (With Damping Unit): 99.5mm ×85.5mm ×92.75mm
GCU Weight: 22g
GCU Dimension: 42 mm X32 mm X9.3 mm
Performance
Controlled Angle Accuracy: ±0.08°
Maximum Controlled Rotation Speed: Tilt axis: ±130°/s
Controlled Rotation Range: Tilt axis control: －130~+45°
Regulatory Approvals
FCC(USA): Yes CE(EU): Yes RoHS(EU): Yes

Model H3-3D H3-2D
Function
3-axis(Tilt, Roll, Pan) stabilization 2-axis(Tilt, Roll)stabilization
Tilt control
Accuracy:0.08°
Camera support: GoPro Hero 3/Hero 3+
Flight controller support: WKM /NAZA-M /NAZA-M V2 /PHANTOM
Hardware
3-axis mechanical structure 2-axis mechanical structure
Stronger motor shaft Normal
Gimbal weight: 168g Gimbal weight: 157g
Standard H3-3D VS Customized H3-3D for Phantom 2
The standard H3-3Dfeatures an independent GCU.Customized H3-3D for Phantom 2 doesn’t have one.
H3-3D Mounting Adapter
