Parameters

Field of View(FOV):Recording FOV: 165°; FPV FOV: 165°@16:9 / 130°@4:3

Video Resolution:1080@60fps / 1080@50fps / 1080@30fps / 720@60fps

Video File Format:MOV

Image Resolution:2 MP

TV Mode:NTSC (720*480) / PAL (720*576) Switchable

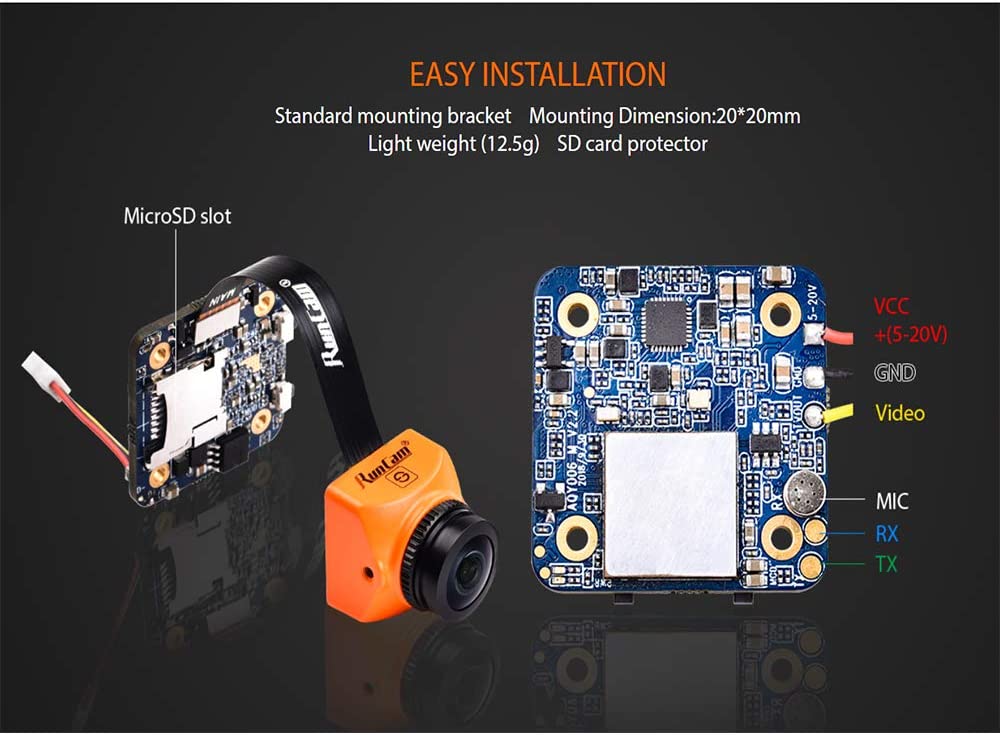

Interface:JST 1.0mm / UART

Max Micro SD Card Supported:64G(need Class 6 or above, recommend Class 10 / UHS-I / UHS-II / UHS-III)

Hole Distance of Installation:20*20mm

Dimensions:PCB 29*29mm / Lens Module 19*19mm

Power Input:DC 5-20V

Working Current:650mA @5V / 270mA @12V

Weight:12.5g

Package

1x Camera

1x Micro-to-full-size mounting bracket

1x Metal Cover

1x Set of M2 screws

1x 3PIN 1.25 JST Silicone Cable(female)

1x 3PIN 1.25 JST Silicone Cable(male)

1x 3PIN 1.25 to 1.0 JST Silicone Cable

1x Manual
